NEW RELEASE!

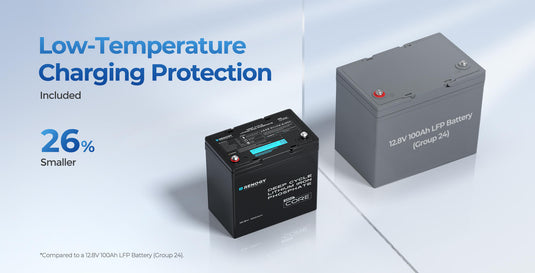

The Core Mini - 12.8V 100Ah Lithium Iron Phosphate Battery is designed to provide robust, reliable, and safe power for off-road, overlanding, and other outdoor applications. Built with advanced Lithium Iron Phosphate (LiFePO4) technology, this high-capacity battery offers longer life, enhanced safety, and greater efficiency, making it an ideal power source for your rugged adventures.
Features:
- Long Cycle Life: Achieves up to 5000 cycles at 80% depth of discharge, providing reliable power for years to come.
- High Performance: Rated for 100Ah capacity, delivering consistent, powerful output with a wide voltage range of 10V to 14.8V.
- Battery Management System (BMS): Advanced integrated BMS safeguards against overcharging, over-discharging, and short-circuiting, ensuring stable and safe operation.
- Compact & Lightweight Design: At only 21.8 lbs, this battery offers high capacity without unnecessary weight, making it easy to transport and install in tight spaces.
- Rugged Durability: IP65-rated for protection against dust and water, suitable for rugged conditions and outdoor use.
Perfect For:
- Off-Road & Overland Vehicles: Powers essential electronics, lighting, and vehicle-mounted equipment during extended stays off the grid.
- Recreational Vehicles & Marine Use: Ideal for RVs, boats, and other remote setups that require dependable, long-lasting energy.
Product Specifications:
- Battery Type: Lithium Iron Phosphate (LiFePO4)
- Nominal Voltage: 12.8V
- Rated Capacity: 100Ah (0.5C, 25℃)
- Voltage Range: 10V to 14.8V
- Maximum Charge Current: 100A
- Maximum Discharge Current: 100A
- Peak Discharge Current: 300A for 5 seconds
- Cycle Life (0.5C, 25℃): 5000 cycles at 80% depth of discharge (DOD), 80% end of life (EOL)
- Charge Temperature Range: 32°F to 122°F (0°C to 50°C)
- Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C)
- Storage Temperature Range: -13°F to 149°F (-25°C to 65°C)
- Operation Relative Humidity: 10% to 95%
- Connection Method: Series and Parallel (up to 4S4P)
- Terminal Bolt Size: M8 x 1.25 x 12 mm
- Recommended Terminal Torque: 88.5 to 106.2 inch-lbs (10 to 12 N·m)
- Protection Rating: IP65
- Dimensions: 9.02 x 5.43 x 8.39 in (229 x 138 x 213 mm)
- Weight: 21.8 lbs (9.9 kg)
Accessories:
- Long Terminal Bolts: 2 x M8 x 1.25 x 15 mm
Warranty: 5-Year Material and Workmanship Warranty
Certifications: MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA compliant
The Core Mini - 12.8V 100Ah Lithium Iron Phosphate Battery combines durability, safety, and performance to keep you powered in the most demanding environments.
